TP9300

1.7" LCD display with metal case
2.12Pcs White LED's Diameter of camera 23mm; waterproof: IP68"
3. Stainless wheel with special structure connecter to monitor
4. fiberglass rod cable, Gold point touch connecter to Camera
5. 20M, 30M , 40M Cable Optional.
6. Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
7. Accessories: monitor+cable+camera+adaptor+battery+ABS case

Products Inquiry

Product Name * :

Email * :

Name :

Tel :

Message :

Validatecode * :

Product Details

This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

The monitor and additional controls are built into a compact, waterproof, lightweight plastic case making it easy to transport.The 7" TFT LCD displays a crisp live color image,with an adjustable sun hood for outdoor inspections.

This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance. It has been widely used in detection fields such as municipal pipelines, electricity, telecommunications, field investigations and disaster rescue.

Feature:

20Meter Cable
12Pcs LED CAM
7" TFT Monitor
120°Camera viewing angle
ABS case for easy transportation

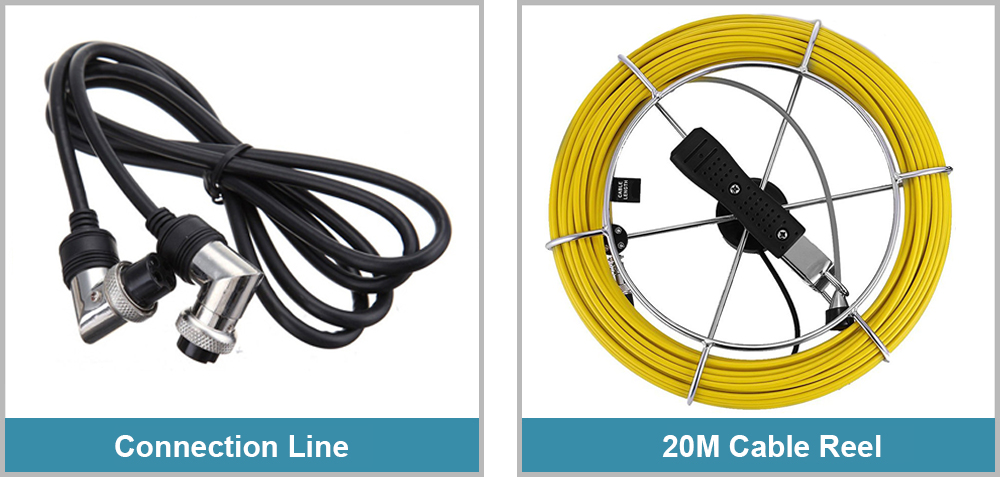

20M Fiberglass Cable & Stainless Steel Reel
Color Stainless Steel Camera with 12Pcs LED Lights

Specifications:

Model	TP9300 (without DVR )	TP9300DVR (with DVR)
SD card	×	√
Charger	AC100-240V DC12V
Battery	12V 4000MAh
Use time for battery	About 5-8 hours
Investigation depth	20M
Wire material	Fiberglass rod
Camera light source	12 LED with high white light (adjustable)
Camera viewing angle	120°
Camera size/material	120MM* 23MM / stainless steel
Fiberglass diameter	4.8MM
Fiberglass color	yellow
Camera picture	color
Operating temperature	-20-60°
Storage temperature	-50-60°
Aluminium box size	490435200mm
Switchboard net weight	12 KG

Package Content:

1 x Camera
1 x Monitor
1 x Connecting Line
1 x ABS Box
1 x Charger
1 x Coil
1 x Screw Driver
