TP9200

1.7" LCD display with metal case
2.12Pcs White LED's Diameter of camera 23mm; waterproof: IP68"
3. Stainless wheel with special structure connecter to monitor
4. fiberglass rod cable, Gold point touch connecter to Camera
5. 20M, 30M , 40M Cable Optional.
6. Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;
7. Accessories: monitor+cable+camera+adaptor+battery+metal case

Products Inquiry

Product Name * :

Email * :

Name :

Tel :

Message :

Validatecode * :

Product Details

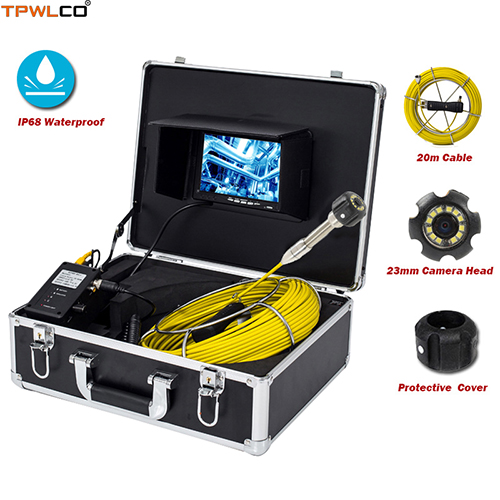

This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance. It has been widely used in detection fields such as municipal pipelines, electricity, telecommunications, field investigations and disaster rescue.

Feature:

High definition camera with12pcs High Light Adjustable White LEDs.

High Flexible Spring 23mm Camera-tipped probe: It is best fit for pipes at 25 -200mm (1 - 8 inch), camera with super

flexible spring can easily go through 90° bend pipes at 45mm (2-inches).

Monitor Specification:

1. 7" Color monitor

2. Monitor Total Pixels: 800(H) X 480(V)

3. Monitor Power Supply: DC 12V

4. Built in sunshade

5. Operating Temperature: -20°C ~ -60°C

6. Portable aluminum case

7. Battery: 12V 4000MAh rechargable li-ion battery,Used time:about 5-8 hours

8. Charger: Input: AC100-240V, output: DC 12V 1000MA

Camera specification:

1.Camera case material: stainless steel

2. Camera glass material: Sapphir Glass

3. sensor size: 1/3 inch CMOS

4. camera led light: 12PCS white LEDS

5. Leds adjustable

6. Special gold point touch connector

7. Cable length: 20 meters

8. camera power supply:DC 12V

9. Work temperature: -20°C-60°C

Cable wheel:

1. Cable size: 240MM(diameter)X70(h)

2. Wire material: fiberglass rod

3. Fiberglass length: 20M

4. Fiberglass diameter: 4.8MM

5. Fiberglass color: yellow

2-in-1 Battery & Contorl Box:

1.Battery power source Switch for pipe inspection video camera system

2.Led brightness Control

Package Included:

1 x Camera

1 x Monitor

1 x Connecting Line

1 x 20m cable

1 x Charger

1 x 4000mAh battery

1 x Screw Driver

1 x Carrying case
