TP9000DVR

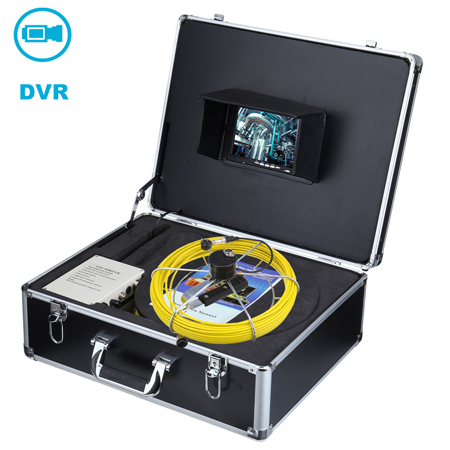

This Pipe Inspection Camera System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

Products Inquiry

Product Name * :

Email * :

Name :

Tel :

Message :

Validatecode * :

Product Details

The monitor and additional controls are built into a compact, waterproof, lightweight plastic case making it easy to transport.The 7" TFT LCD displays a crisp live color image,with an adjustable sun hood for outdoor inspections.

Feature:

20Meter Cable
12Pcs LED CAM
SD Card Record,7" TFT Monitor
120°Camera viewing angle
Metal carry case for easy transportation
It can recod the video direcity to the SD card
With built-in DVR
SD-card Video & Picture Pipe Inspection System
20M Fiberglass Cable & Stainless Steel Reel
Color Stainless Steel Camera with 12Pcs LED Light

Specifications:

Model	TP9000 (without DVR )	TP9000DVR (with DVR)
SD card	×	√
Charger	AC100-240V DC12V
Battery	12V 4000MAh
Use time for battery	About 5-8 hours
Investigation depth	20M
Wire material	Fiberglass rod
Camera light source	12 LED with high white light (adjustable)
Camera viewing angle	120°
Camera size/material	120MM* 23MM / stainless steel
Fiberglass diameter	4.8MM
Fiberglass color	yellow
Camera picture	color
Operating temperature	-20-60°
Storage temperature	-50-60°
Aluminium box size	460MM360MM190MM
Switchboard net weight	10 KG

Package Content:

1 x Camera
1 x Monitor
1 x Connecting Line
1 x Aluminum Box
1 x Charger
1 x Coil
1 x Screw Driver
